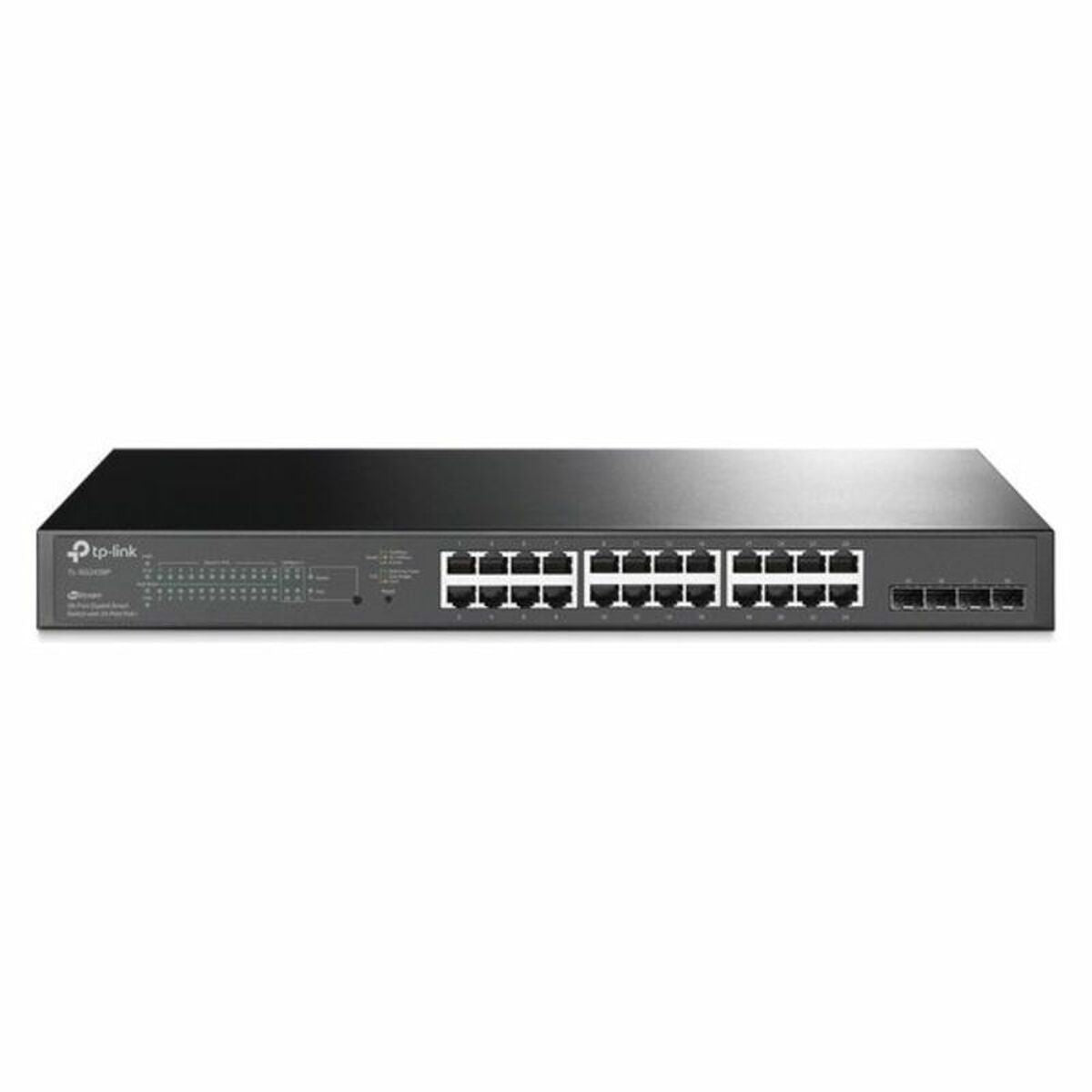

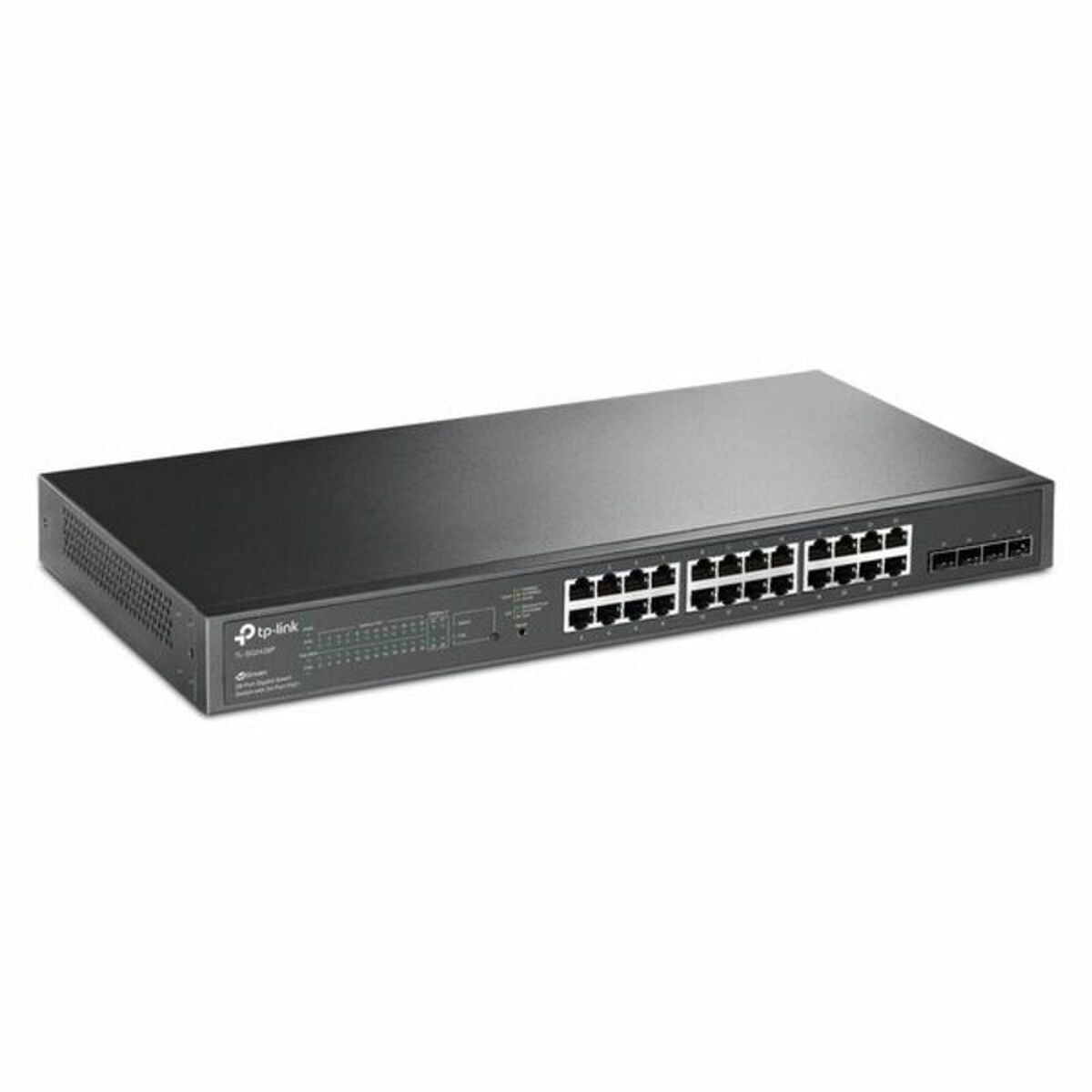

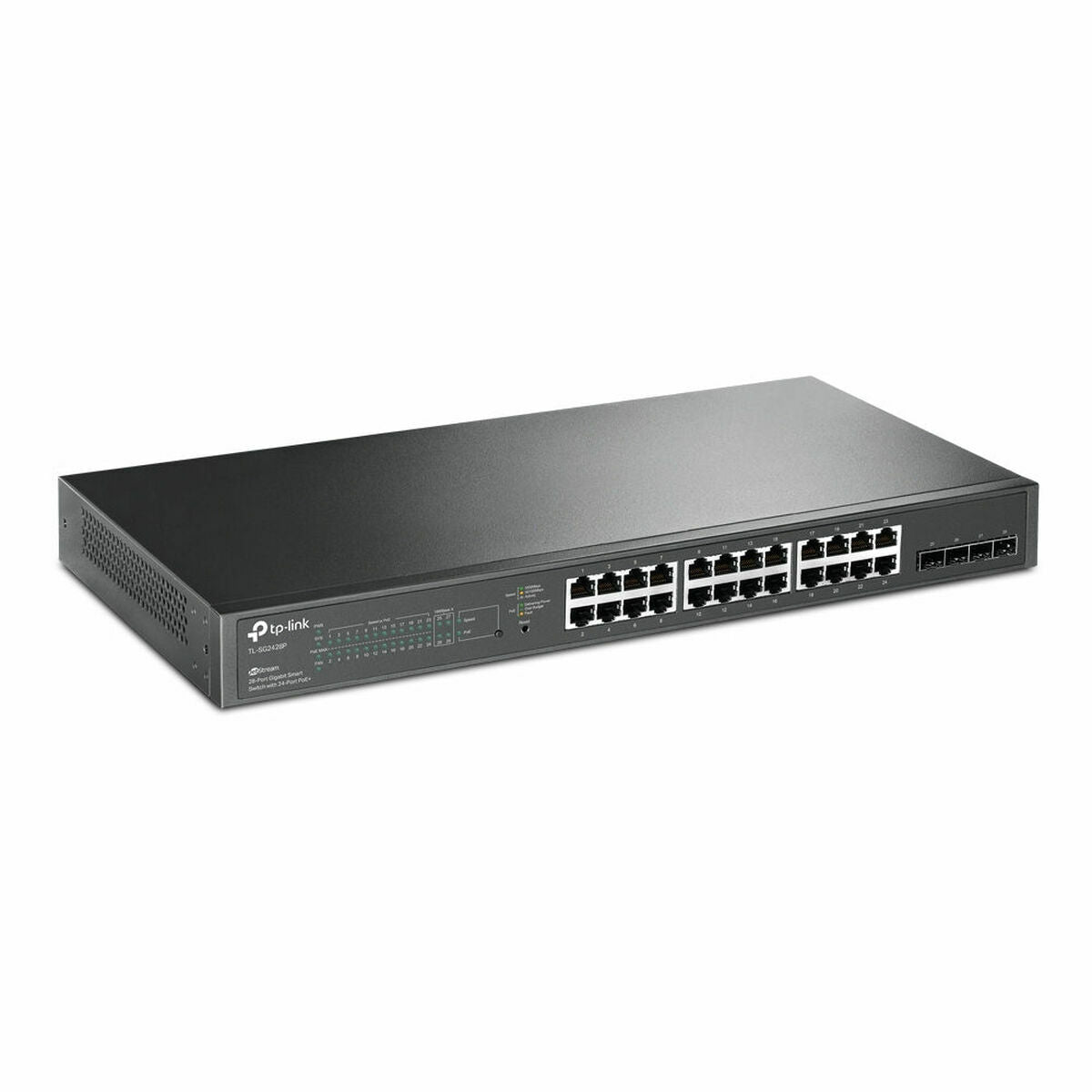

The TL-SG2428P from TP-Link is a high-performance managed switch designed for business environments requiring reliable and versatile connectivity. This device offers a total of 28 ports, of which 24 are Gigabit Ethernet RJ45 ports (10/100/1000 Mbps) supporting PoE+ (Power over Ethernet), allowing connected devices like IP cameras or VoIP phones to be powered directly from the switch. It also includes 4 SFP ports for fiber optic links, providing long-distance connections with high stability and speed. Its switching capacity reaches 56 Gbit/s, enabling efficient network traffic management even in high-demand environments. It features a MAC address table with 8000 entries, facilitating advanced traffic management and segmentation in complex networks. This model complies with key network standards such as IEEE 802.1D, 802.1Q, 802.1p, 802.1s, 802.1w, 802.1x, and 802.3ab, integrating security protocols, quality of service (QoS), and advanced management to ensure stable and secure operation. The switch is rack-mountable, optimizing integration in data centers or communication cabinets, and has a robust design with an approximate weight of 1.5 kg and a black finish. Its power consumption is around 30 W, which combined with its PoE+ capability, offers a balance between power and efficiency. In short, the TP-Link TL-SG2428P is a solid solution for corporate networks needing fast, reliable, and flexible connectivity with support for powering devices via network cable.

• Ventilator:
  • x 2
  • 2
• Approx. dimensions: 44 x 22 x 4,4 cm
• Connections:
  • RJ45 x 24
  • SFP x 4
  • Ethernet LAN
• Recommended use: Rack Cabinet
• Voltage: 230 V
• Product with plug: Yes
• Ports:
  • 24
  • 28
• Type of plug: Plug EU
• Type:
  • Switch
  • Cupboard
• Speed: 1 Gbps
• Colour: Black
• Weight: 1,5 Kg
• Holder: Multi-support
• Power supply: CA cable
• Certificate: CE, FCC, RoHS
• Width: 44 cm
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Safety: IGMP

Realize More Possibilities with OmadaJetStream 28-Port Gigabit Smart Switch with 24-Port PoE+Software Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

• Quality of Service (QoS) support: Y
• Web-based management: Y
• ARP inspection: Y
• System event log: Y
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Fiber ports quantity: 4
• Fiber optic connector: SFP
• Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,10BASE-TX
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Port mirroring: Y
• Flow control support: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Spanning tree protocol: Y
• Auto-negotiation: Y
• VLAN support: Y
• Virtual LAN features: MAC address-based VLAN,Protocol-based VLAN,Voice VLAN
• Number of VLANs: 4000
• Fiber ethernet cabling technology: 1000BASE-X
• MAC address table: 8000 entries
• Switching capacity: 56 Gbit/s
• Forwarding rate: 41.7 Mpps
• Number of queues: 8
• Jumbo frames support: Y
• Jumbo frames: 9000
• DHCP features: DHCP relay,DHCP server,DHCP snooping,DHCPv6 client
• Access Control List (ACL): Y
• IGMP snooping: Y
• Security algorithms: HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
• Loop protection: Y
• BPDU filtering/protection: Y
• IP-MAC-Port binding: Y
• Authentication type: RADIUS
• Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
• Multicast support: Y
• Rack mounting: Y
• Product colour: Black
• Number of fans: 2 fan(s)
• Certification: CE, FCC, RoHS
• Firmware upgradeable: Y
• Power consumption (max): 308.6 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 24
• Operating temperature (T-T): 0 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 1052.94 BTU/h
• Width: 440 mm
• Depth: 220 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Rack mount kit: Y
