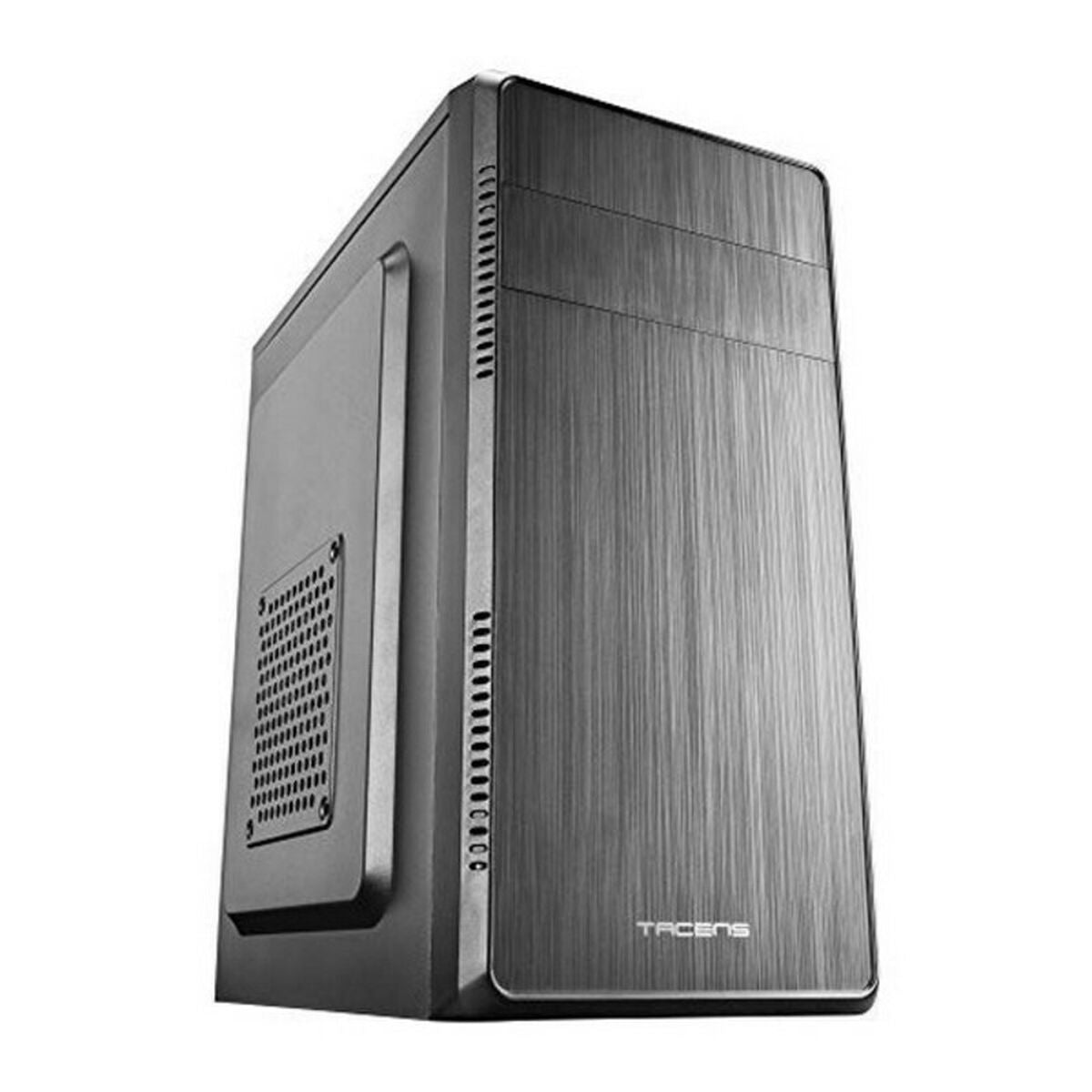

The Tacens ACM500 case is a mini-tower case specifically designed for MicroATX and Mini-ITX motherboards, offering a compact and functional solution for small-sized PC builds. Made with a polished black aluminum front panel, it combines durability with a refined look, while its ABS structure provides lightness with a total weight of 2.28 kg. This case supports various components, accommodating 2.5" and 3.5" hard drives as well as 5.25" optical drives, featuring one internal optical bay and several external bays for SSD and HDD storage—specifically 2 bays for 2.5” SSDs, 2 for 3.5” HDDs, plus one external 5.25” bay. For connectivity, it includes a panel with one USB 3.0 port and one USB 2.0 port, along with audio and microphone jacks, enabling easy connection of basic peripherals and devices. Inside, the ACM500 supports essential power and internal connectors, including a 20+4 pin ATX connector, a 4+4 pin EPS, three SATA connectors, and two PATA connectors, ensuring compatibility with a wide range of power supplies and drives. Its ventilation system is designed to maintain proper cooling, featuring two 12 cm front fans, an optional 12 cm side fan, and an optional 8 cm rear fan, collectively helping to dissipate heat generated by internal components. Regarding hardware compatibility, the case can house graphics cards up to 265 mm in length and CPU coolers up to 145 mm in height, and it is designed for ATX power supplies up to 500 W. Measuring 305 x 356 x 185 mm, the Tacens ACM500 is ideal for users seeking to maximize compact systems without sacrificing expansion options or thermal management. This case strikes a balance between small size, material quality, and versatility, making it a practical choice for MicroATX and Mini-ITX builds that require a neat design and full functionality.

• Type:
  • Mini-Tower
  • PC
• Includes: Power supply
• Form factor:
  • Mini-ITX
  • MicroATX
  • Mini-Tower
• Material:
  • ABS
  • Aluminium
• Compatible: 2,5"/3,5"/5,25" Hard Drive
• Power supply:
  • 500 W
  • ATX
• Not included:
  • Ventilator
  • Hard Drive
  • Motherboard
• Approx. dimensions: 30,5 x 35,6 x 18,5 cm
• Connections:
  • ATX 24-pin x 1
  • SATA x 3
  • EPS 8-pin x 1
  • PATA x 2
  • USB
  • USB 2.0
  • USB 3.2
• Colour: Black
• Ports:
  • Audio entry
  • Audio Output
• Expansion slots: 4
• Length: 30,5 cm

DesignThe ACM500 is a MicroATX compact case with optimized structure for an easy and quick installation, and a sober and minimalist design that dispense unneeded ornaments to offer a professional and straight performance. It also has a front panel with high-quality brushed-aluminum type finish and a strong structure. FeaturesIt has a fully optimized space for high-performance hardware and multiple storage devices, from a 5.25” optical bay drive to HDDs and 2 SSDs support. Its front panel also offers 1 x 3.0 USB and 1 x 2.0 USB slots, and Audio and Mic ports.CoolingBesides a prepared structure to guarantee a good airflow during its performance, the ACM500 has optimized support for an 80mm rear fan and 120mm side fan to boost the cooling of your case.Energetic efficiencyThe ACM500 includes a 500W power supply equipped with an 8cm TACENs cooling fan with smart thermal speed control and anti-vibration system. Prepared to grant an optimal performance to your case, it generates the less possible noise and provides a stable energetic efficiency.

• Form factor: Mini Tower
• Type: PC
• Material: Aluminium
• Product colour: Black
• Supported motherboard form factors: micro ATX, Mini-ITX
• Number of 3.5" bays: 2
• Number of 5.25" bays: 2
• Number of 2.5" bays: 2
• Number of expansion slots: 4
• Maximum CPU cooler height: 14.5 cm
• Maximum graphics card length: 26.5 cm
• Power supply included: Y
• Power supply: 500 W
• Supported power supply form factors: ATX
• ATX power connector (20+4 pin): Y
• Number of SATA connectors: 3
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• Audio input: Y
• Audio output: Y
• Front fans installed: 2x 120 mm
• Front fans diameters supported: 120 mm
• Side fans installed: 1x 120 mm
• Side fans diameters supported: 120 mm
• Rear fans diameters supported: 80 mm
• Supported HDD sizes: 2.5,3.5,5.25"
• Width: 185 mm
• Depth: 305 mm
• Height: 356 mm
• Weight: 2.28 kg
• Package width: 204 mm
• Package depth: 350 mm
• Package height: 390 mm
